  #41
Old 10-25-2018, 04:39 PM
sf3543 sf3543 is offline

Join Date: Jan 2005
Location: San Antonio, TX
Posts: 1,024
Default

When doing wiring, the first thing I do is create the schematic with a labeling scheme.
During actual installation, I use yellow heat shrink and a fine line sharpie. Just write directly on the heat shrink and just shrink it onto each end of the wire run.
If it?s a particularly hostile spot, I sometimes shrink clear over the yellow.
The writing shrinks along with the wrap but remains easy to read.
It?s easy, fast and cheap.
__________________
Steve Formhals
A&P, Tech Counselor & Flight Advisor
RV3B
RV8
Reply With Quote
  #42
Old 10-25-2018, 08:33 PM
DRMA DRMA is offline

Join Date: Jan 2016
Location: Sugar Land, TX
Posts: 406
Default

Quote:
Originally Posted by Iluke View Post
Dave-

Is that powerpoint format something you could share? -Ivan Luke
Ivan,

I'm happy to share but I don't have an easy way to post my files right now. My files are also a work in progress and so not yet complete.

However, there was another RV-10 builder who attended this same AEA class who has done an excellent job of explaining the process. Check out his posts on VAF at http://www.vansairforce.com/communit...&highlight=ppt

Also Tim Spear posted a copy of Leok's ppt file on his web server for folks to download. Look at the last post on this page for a link to the ppt file: http://www.vansairforce.com/communit...pt#post1195513

If after you have read his postings you still want a copy of my working file, send me your email address via private message on this board and I will email you a copy of my file.

Using PowerPoint does take some practice to do efficiently. There are tools for grouping, aligning, rotating, etc. that work well. I've been using PowerPoint since about 1994, and so it has become an easy tool for me to use. If there are other tools (CADD, drawing programs, etc.) that your are comfortable using, they might be a better choice.

Cheers,
__________________
Dave Macdonald

RV-10 First Flight April 1, 2020. Currently in Phase 1
2020 VAF Dues Paid

Last edited by DRMA : 10-25-2018 at 08:42 PM.
Reply With Quote
  #43
Old 11-05-2018, 05:02 PM
Av8torTom's Avatar
Av8torTom Av8torTom is offline

Join Date: Nov 2009
Location: Yardley, PA
Posts: 1,334
Default This works great

Thanks for all your input. I bought a Dymo LabelManager 160 for 20 bucks on Amazon, and 1/4? heat shrink label tubes. I was concerned that the 1/4? tubes would be too big for 20 gauge wire but it works perfectly.



__________________
RV-9A (empennage completed, both wings completed, fuselage and finish kit completed, engine hung, working on panel and wiring)
N677AT reserved
Superior XP O-320, 160HP
Picture log: http://s271.photobucket.com/albums/j...8tor215/RV-9A/
Reply With Quote
  #44
Old 11-05-2018, 05:46 PM
RV10Pilot RV10Pilot is offline

Join Date: Jan 2005
Location: Medford, NJ USA
Posts: 283
Default

Quote:
Originally Posted by Av8torTom View Post
Thanks for all your input. I bought a Dymo LabelManager 160 for 20 bucks on Amazon, and 1/4” heat shrink label tubes. I was concerned that the 1/4” tubes would be too big for 20 gauge wire but it works perfectly.
What heat shrink label tubes did you buy? The $20 LabelManager is not supposed to be able to print on heat shrink, but obviously that is not true.
Reply With Quote
  #45
Old 11-05-2018, 06:18 PM
Av8torTom's Avatar
Av8torTom Av8torTom is offline

Join Date: Nov 2009
Location: Yardley, PA
Posts: 1,334
Default

Quote:
Originally Posted by RV10Pilot View Post
What heat shrink label tubes did you buy? The $20 LabelManager is not supposed to be able to print on heat shrink, but obviously that is not true.
The part number is A18051. I purchased a generic three pack (5'/pack) for $22
__________________
RV-9A (empennage completed, both wings completed, fuselage and finish kit completed, engine hung, working on panel and wiring)
N677AT reserved
Superior XP O-320, 160HP
Picture log: http://s271.photobucket.com/albums/j...8tor215/RV-9A/
Reply With Quote
  #46
Old 11-05-2018, 06:43 PM
RWoodard's Avatar
RWoodard RWoodard is offline

Join Date: Jan 2005
Location: Brighton, Colorado
Posts: 393
Default

Has anyone been able to find printable tubing in something smaller than 1/4?? Most all of the wiring I plan to install is 22 gauge.

I think I?ve found one printer for nearly $300 that has something less than 1/4? tubing available, but the tubing is something like $40 for a 3 foot length.

I?ve used laser printer labels with clear heatshrink in the past, but I really like the look of the printed heatshrink.

Thanks in advance!
__________________
Rod Woodard
Brighton, Colorado (CO12)
RV-3 N87CT (Thanks Chuck!)
Glasair 1RG N388DM
RV-3 N99RV sold 01/2000
F1 MkIII empennage?arrived 08/22/2018--collecting dust
Reply With Quote
  #47
Old 11-05-2018, 06:48 PM
Av8torTom's Avatar
Av8torTom Av8torTom is offline

Join Date: Nov 2009
Location: Yardley, PA
Posts: 1,334
Default

Rod,

The 1/4" tubing will do 22 gauge wire. I'm amazed at how much it will shrink.

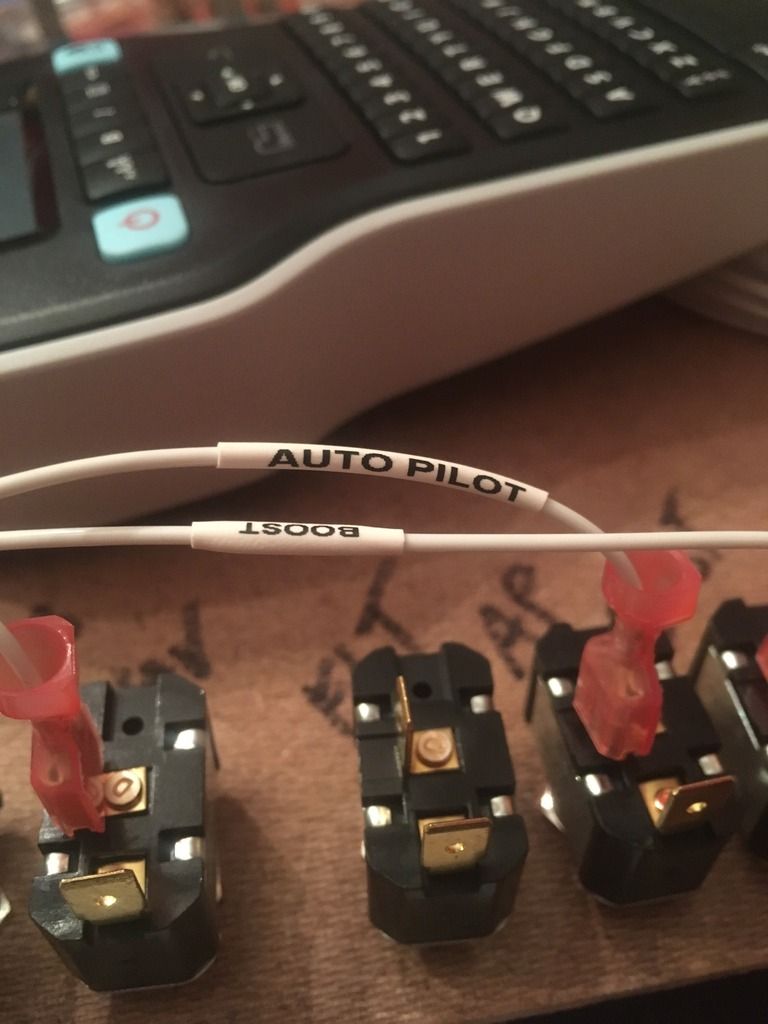

Here's how it looks... sorry about the spelling

__________________
RV-9A (empennage completed, both wings completed, fuselage and finish kit completed, engine hung, working on panel and wiring)
N677AT reserved
Superior XP O-320, 160HP
Picture log: http://s271.photobucket.com/albums/j...8tor215/RV-9A/

Last edited by Av8torTom : 11-05-2018 at 07:44 PM.
Reply With Quote
  #48
Old 11-05-2018, 07:51 PM
RV7A Flyer's Avatar
RV7A Flyer RV7A Flyer is offline

Join Date: Jul 2013
Location: US
Posts: 2,251
Default

Quote:
Originally Posted by Av8torTom View Post
Rod,

The 1/4" tubing will do 22 gauge wire. I'm amazed at how much it will shrink.

Here's how it looks... sorry about the spelling

Better redo that one. It's misspelled

JK!
__________________
2019 Dues paid!
Reply With Quote
  #49
Old 11-05-2018, 07:56 PM
Walt's Avatar
Walt Walt is online now

Join Date: Aug 2005
Location: Dallas/Ft Worth, TX
Posts: 5,687
Default

I use the K-Sun with 1/8" (3mm tube).
__________________
Walt Aronow, DFW, TX (52F)

EXP Aircraft Services LLC
Specializing in RV Condition Inspections, Maintenance, Avionics Upgrades
Dynamic Prop Balancing, Pitot-Static Altmeter/Transponder Certification
FAA Certified Repair Station, AP/IA/FCC GROL, EAA Technical Counselor
Authorized Garmin G3X Dealer/Installer
RV7A built 2004, 1700+ hrs, New Titan IO-370, Bendix Mags
Website: ExpAircraft.com, Email: walt@expaircraft.com, Cell: 972-746-5154
Reply With Quote
  #50
Old 11-05-2018, 08:41 PM
RWoodard's Avatar
RWoodard RWoodard is offline

Join Date: Jan 2005
Location: Brighton, Colorado
Posts: 393
Default

Thanks!

K-sun is the brand I found that seemed quite expensive. Any advice on a reasonably priced source? Or am I going to have to find the pry bar for my wallet again? :-)

I’m just airline pilot cheap!

UPDATE in the middle of the night...

I ordered the Epson LW-PX900. It prints at 360dpi and accepts shrink tube cartridges ranging from 1/8” to 1”. I found the best price at an online place called Image Supply. I ordered 1/8, 3/16, and 3/8” black on white tubing. My thought was 22/24 gauge wire, multi-wire shielded, and RG400 in selecting the shrinktube sizes. I’ll report back with pics and a PIREP.

The total for my order was right around $375. OCD costs money! Gots to have a tidy wiring harness. Pahan would be proud... right Pahan?
__________________
Rod Woodard
Brighton, Colorado (CO12)
RV-3 N87CT (Thanks Chuck!)
Glasair 1RG N388DM
RV-3 N99RV sold 01/2000
F1 MkIII empennage?arrived 08/22/2018--collecting dust

Last edited by RWoodard : 11-06-2018 at 02:43 AM. Reason: Added order info
Reply With Quote
