Default Molex pins for elevator trim servo

I am having trouble getting the pins that came in the empennage kit for the trim servo inserted into the Molex connector. They go in fine but not far enough to click into place, and those little tiny wires don't make a great platform for pushing the pins with much force.

Probably, I screwed up the crimping by using a cheap tool, and the imperfectly crimped pins are interfering with their own insertion into the connector. I bought a better crimper for future use. But I can't figure out precisely what to order or from where, to get replacement pins. I ordered some from Aircraft Spruce but they are way too big.

Any tips on either inserting the pins into the connector or finding replacement pins? Thanks in advance!
Reply With Quote
  #2
Old 04-24-2018, 03:25 PM
Bavafa Bavafa is offline

Join Date: Oct 2007
Location: Sacramento, CA
Posts: 3,351
Default

I used good tools and still had trouble getting them to lock-in but if carefully done, they will go in far enough to lock in place. Try turning them (changing the orientation) a bit as you are pushing them in. When they have gone far enough, they would lock in place.

Hope this helps.
__________________
Mehrdad
N825SM RV7A - IO360M1B - SOLD
N825MS RV14A - IO390 - Flying
Dues paid
Reply With Quote
  #3
Old 04-24-2018, 03:46 PM
Reflex Reflex is offline

Join Date: Jan 2015
Location: Kansas
Posts: 169
Default

I thought I might run into the same problem. With everything I'd read about the first attempt crimping and inserting pins into Molex connectors, I decided to order a few and practice. With all the variations out there, it was tough to find the right ones. Below is a picture of my packing slip. Pins were and exact match and the plug is the same plug sent by Vans. Freight was more than the cost of the items.

[IMG][/IMG]
__________________
Dues Paid for 2020
RV-14
Empennage Complete (including fiberglass)
Wings complete (including fiberglass)
Fuse joined and working on painting interior
Reply With Quote
  #4
Old 04-24-2018, 04:21 PM
azflyer21 azflyer21 is offline

Join Date: Nov 2016
Location: Scottsdale AZ
Posts: 251
Default

Make sure they are going in the correct orientation and use a tiny flat head screwdriver to push the pins.
__________________
Kevin Lippert
RV-14A N1402 Flying 03-2020
Phase 1 Complete 07-12-2020
Build Log
Zenith 750 completed 2016 -
Sold
Reply With Quote
  #5
Old 04-24-2018, 05:10 PM
mc607 mc607 is offline

Join Date: Apr 2014
Location: Canada
Posts: 25
Smile

Call Steinair. They built the harness for Vans. The tech there was awesome on the phone and explained everything in detail. Went as far as texting me a picture of a properly done crimp. I bought the good parallel jaw pliers from them as well as a bunch of extra pins. Practiced on the pins and exact gauge wire before I did the servo connector. Also bought a bench mounted magnifying glass with a light! Go broke with style.
Reply With Quote
  #6
Old 04-24-2018, 06:10 PM
SgtZim SgtZim is offline

Join Date: May 2015
Location: Crittenden, ky
Posts: 194
Default

Ditto Steinair - they have the pins and insertion removal tools.
__________________
RV-8 slow build
IO360-M1B Sensenich fixed pitch
Garmin G3X
GTN 625
GNC 255
GTR 20
GTX 45R
G5 x 2

Facebook "log" https://www.facebook.com/BZsRVproject/
Reply With Quote
  #7
Old 04-24-2018, 06:24 PM
Carl Froehlich's Avatar
Carl Froehlich Carl Froehlich is offline

Join Date: Dec 2007
Location: Dogwood Airpark (VA42)
Posts: 2,596
Default

Do yourself a favor and cut off those tiny molex plugs and replace with standard plugs from Stein.

Carl
Reply With Quote
  #8
Old 04-24-2018, 07:52 PM
Jake14 Jake14 is offline

Join Date: May 2014
Location: Seattle
Posts: 323
Default

after a few weeks flying, the trim positiion indicator failed and I tracked it down to the plug at the tail cone. One of the wires in the supplied harness just fell out of the plug. I replaced the plug with a d-sub 9-pin connector and all has been well since
__________________
RV-14A flying 410 hrs
Reply With Quote
  #9
Old 04-24-2018, 08:13 PM
Steve Melton's Avatar
Steve Melton Steve Melton is offline

Join Date: Apr 2011
Location: Cincinnati, OH
Posts: 2,791
Default

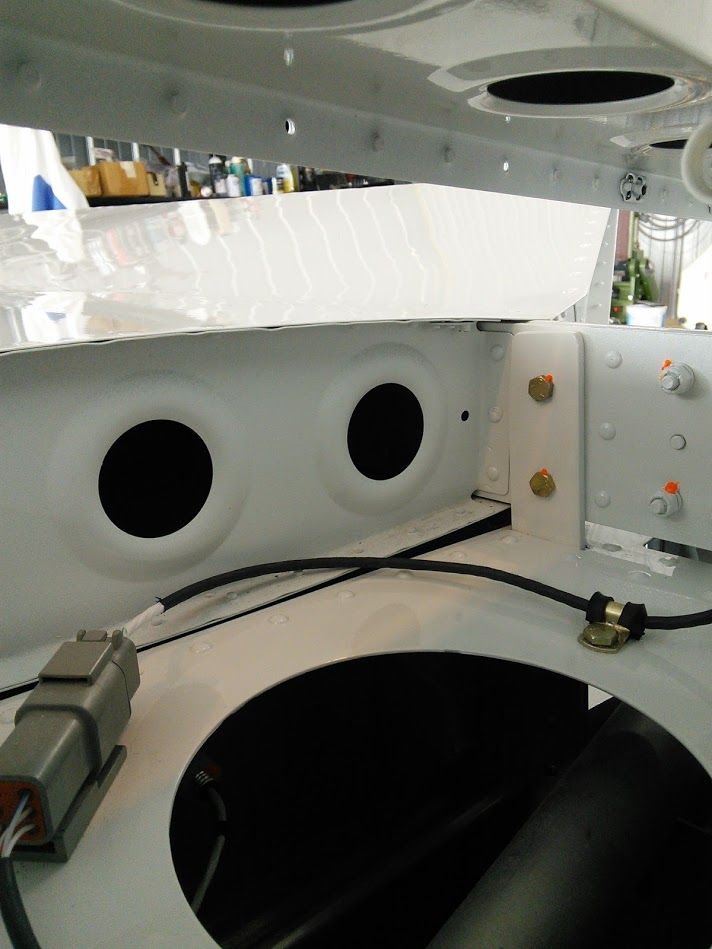

or a DTM sealed connector with gold pins in an area with less vibration.

__________________
Steve Melton
Cincinnati, OH
RV-9A, Tip-up, Superior O-320, roller lifters, 160HP, WW 200RV, dual impulse slick mags, oil pressure = 65 psi, EGT = 1300F, flight hours = 800+ for all

Simplicity is the art in design.
My Artwork is freely given and published and cannot be patented.
www.rvplasticparts.com
Reply With Quote
  #10
Old 04-24-2018, 09:18 PM
iamtheari iamtheari is offline

Join Date: Nov 2017
Location: ND
Posts: 452
Default

That DTM connector is a thing of beauty. Do you have a recommended source in the US?
