Default HS Questions

1- on the HS and VS, they show holes to leave open to attach fairings. I will match drill them, but do I dimple them, or do the attachments later use round heads instead of flat?

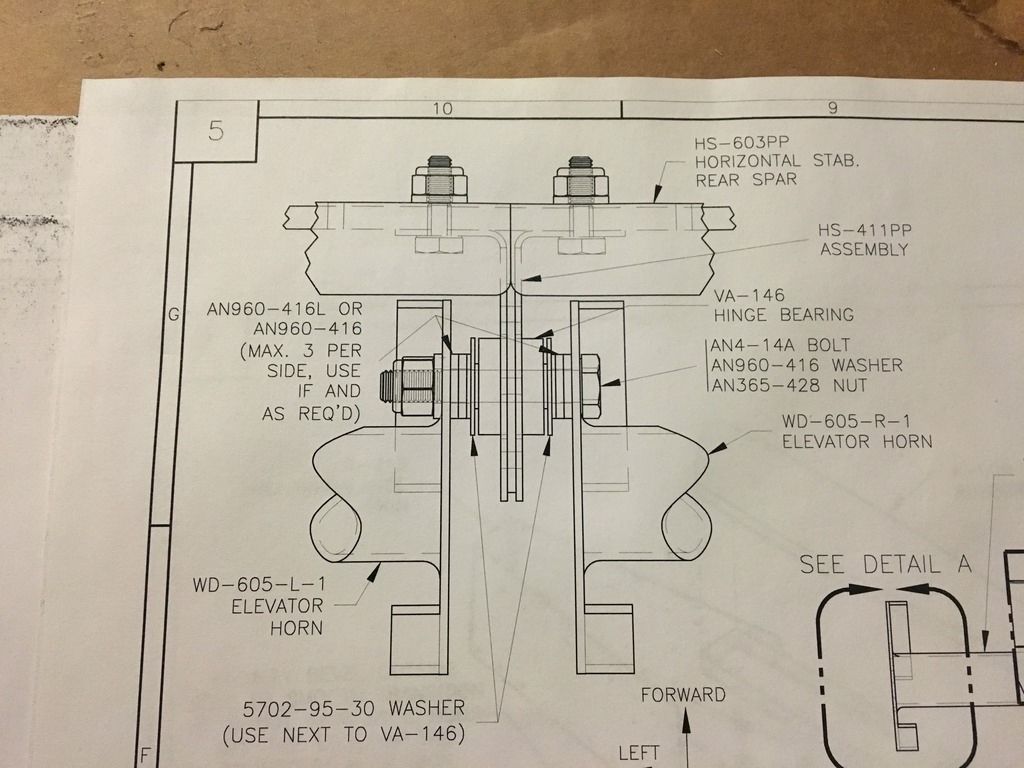

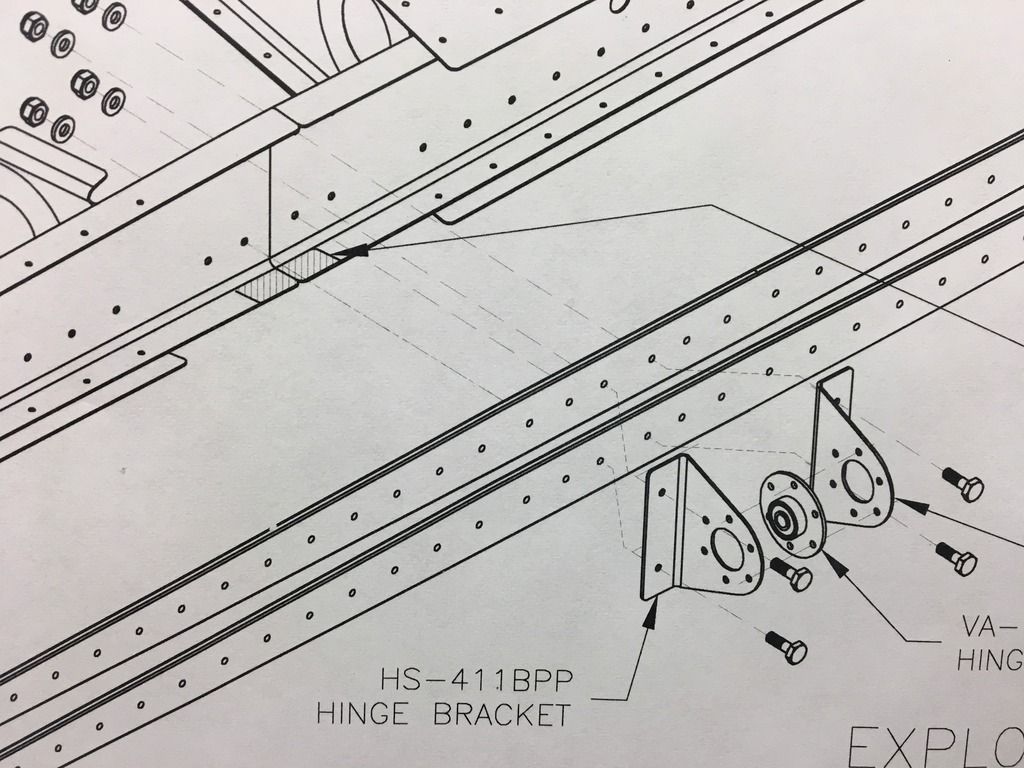

2- Reference the pictures below. I need to make a cutout for the elevator control arms to move through a spot in the rear HS spar. The cutout is the hatched section in the second picture. They offer a full-scale drawing of the hinge and horns, but how much clearance do i need around them and the spar? Trying to determine how much to trim widthwise on the spars. Looked ahead in the plans but couldn't find anything.



__________________
1961 C172B
RV-7
Tail kit in progress

Last edited by PilotRPI : 01-17-2017 at 08:11 AM.
Reply With Quote
  #2
Old 01-11-2017, 04:30 PM
N804RV's Avatar
N804RV N804RV is offline

Join Date: May 2013
Location: Mount Vernon, Wa
Posts: 642
Default

#1 Just leave them open for now. Match drilling won't matter. But, don't dimple for now. Later, you'll be reaming out those holes and installing nut plates.
__________________
Ken W.
Mount Vernon, WA
2020 VAF Supporter

Last edited by N804RV : 01-11-2017 at 08:06 PM.
Reply With Quote
  #3
Old 01-11-2017, 05:47 PM
Mach.26's Avatar
Mach.26 Mach.26 is offline

Join Date: Jan 2017
Location: Ozark, AL
Posts: 62
Default

Maybe this post in the RV-8 forum on the control horn cut out would help. The spar cut outs between the 7 and 8 should be the same. http://www.vansairforce.com/communit...d.php?t=145488
__________________
Adam Wright
RV-8 Builder 83611
Reply With Quote
  #4
Old 01-16-2017, 11:09 PM
griffg griffg is offline

Join Date: Apr 2015
Location: Sydney, Australia
Posts: 33
Default HS Cutouts Rear Spar

I hope the following will help.

The rectangular hole in the Aft Deck F-714 (drawing 26) where the elevator horns pass through is 2 inches wide.

On my aircraft the dimension across the elevator horns as fitted is a fraction under 1 3/4 inches which gives approximately 1/8 clearance on both sides of the horns to the hole in F-714.

The flange on the rear spar is 5/8 inch. I removed it to a depth of 1/2 inch which was more than I needed to have done.

My suggestion is to remove at least 1 1/16 inch on each side from the join (i.e. 2 1/8 total) and to a depth of 3/8 inch. This will give you a small margin to the front and sides of the rectangular hole in F-714.

The elevator Down Stop F-711E (drawing 27A) on my aircraft protrudes rearwards from the front face of the rectangular hole in F-714 by at least 1/32 inch. This limits the forward movement of the elevator horns.

Good luck with your building.

Gordon
__________________
Gordon Griffin
RV-7A under construction
VH-NAK
IO-360-M1B
Catto 3 blade prop
