Default Failed eye test for F-601R

The parts index for the 9A says there is a part to be fabricated
F-601R
on drawing 17A. Can't find it. Also checked dwg 19 since it's supposed to be a firewall angle. Can anyone point me to the coordinates of this part ?

Thanks.
__________________
Michael B.
C-FWMB (reserved)
College Fund Contributor
Reply With Quote
  #2
Old 12-23-2016, 02:36 PM
VNS VNS is offline

Join Date: Apr 2011
Location: New Zealand
Posts: 52
Default

It just refers to the R or L versions of the 601 part. E.G. 601P x 2 or 601PR and 601PL
__________________
Patrick ZK VNS
RV 9A
Reply With Quote
  #3
Old 12-24-2016, 07:12 AM
bret's Avatar
bret bret is offline

Join Date: Feb 2010
Location: Gardnerville Nv.
Posts: 2,828
Default

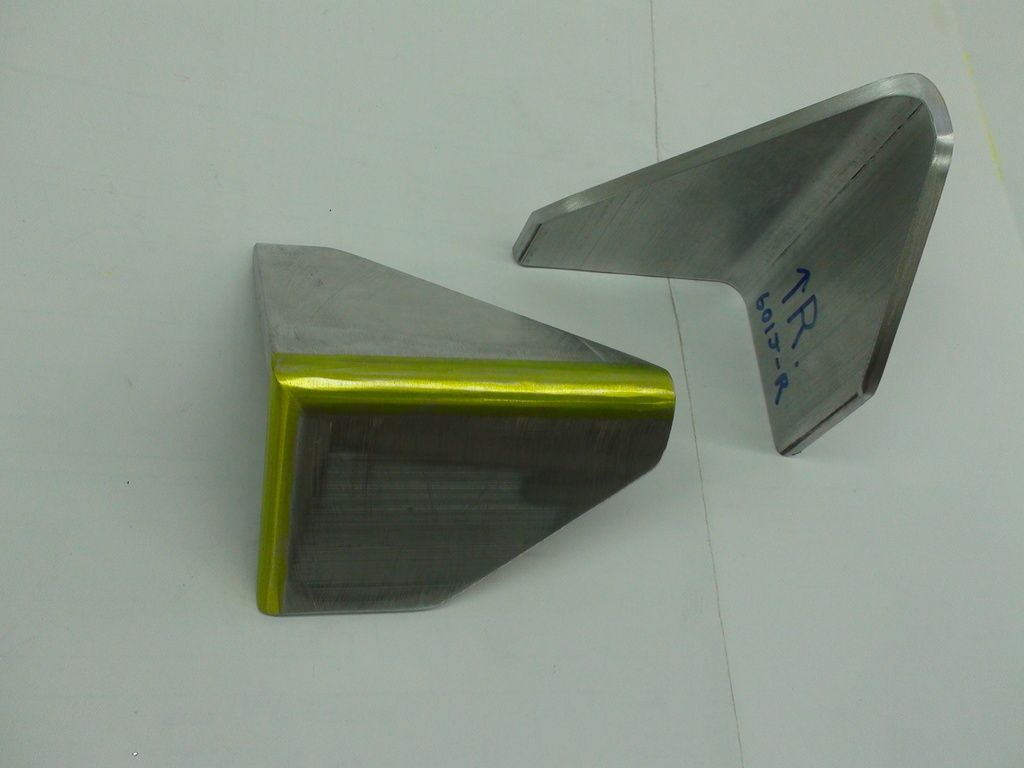

are theses what you are looking for?

__________________
7A Slider, EFII Angle 360, CS, SJ.
Reply With Quote
  #4
Old 12-24-2016, 07:13 AM
1bigdog 1bigdog is offline

Join Date: Jun 2014
Location: Markham, Ontario, Canada
Posts: 220
Default ???

Hi Patrick,

Pardon my ignorance. I'm not following.
It's calling out a single part as material, meaning the part is to be fabricated but I can't find that part on any drawing or discussed in the manual. DWG 17A is for the longeron bend making this more confusing.

There doesn't appear to be a distinct part 601 for there to be a left and right version. Still cannot find that part.

Thanks.
__________________
Michael B.
C-FWMB (reserved)
College Fund Contributor
Reply With Quote
  #5
Old 12-24-2016, 07:27 AM
1bigdog 1bigdog is offline

Join Date: Jun 2014
Location: Markham, Ontario, Canada
Posts: 220
Default don't think so ...

Quote:
Originally Posted by bret View Post
are theses what you are looking for?

Hi Bret,

Going by the construction manuals parts index:

F-601R FIREWALL ANGLE 1 17A MATERIAL AA6-063X3/4X3/4 FUSE-ALL

so it can't be those parts. It should be a single part F-601R. I suspect not everyone used the parts index but I used it as a reference to make sure I didn't miss fab'ing some part. I'm doing them all at once then into alodine.

So, still confused.

Thanks.
__________________
Michael B.
C-FWMB (reserved)
College Fund Contributor
Reply With Quote
  #6
Old 12-24-2016, 08:12 AM
wirejock's Avatar
wirejock wirejock is offline

Join Date: Oct 2005
Location: Estes Park, CO
Posts: 3,947
Default Angle

Quote:
Originally Posted by 1bigdog View Post
Hi Bret,

Going by the construction manuals parts index:

F-601R FIREWALL ANGLE 1 17A MATERIAL AA6-063X3/4X3/4 FUSE-ALL

so it can't be those parts. It should be a single part F-601R. I suspect not everyone used the parts index but I used it as a reference to make sure I didn't miss fab'ing some part. I'm doing them all at once then into alodine.

So, still confused.

Thanks.
They should be shown on the firewall plan. Looks like a right and left fabricated from .063"x3/4"x3/4". I would bet they are the two diagonal angles on the firewall.
__________________
Larry Larson
Estes Park, CO
http://wirejockrv7a.blogspot.com
wirejock at yahoo dot com
Donated 12/03/2019, plus a little extra.
RV-7A #73391, N511RV reserved (2,000+ hours)
HS SB, empennage, tanks, wings, fuse, working finishing kit
Disclaimer
I cannot be, nor will I be, held responsible if you try to do the same things I do and it does not work and/or causes you loss, injury, or even death in the process.
Reply With Quote
  #7
Old 12-24-2016, 08:25 AM
1bigdog 1bigdog is offline

Join Date: Jun 2014
Location: Markham, Ontario, Canada
Posts: 220
Default Still don't think so

Quote:
Originally Posted by wirejock View Post
They should be shown on the firewall plan. Looks like a right and left fabricated from .063"x3/4"x3/4". I would bet they are the two diagonal angles on the firewall.
Hi Larry

You are thinking of the 601D left and right. Those are manufactured. Still no joy.
I've sent a message to VANs but looks like they are out until Tuesday.


Thanks.
__________________
Michael B.
C-FWMB (reserved)
College Fund Contributor
Reply With Quote
  #8
Old 12-24-2016, 08:32 AM
wirejock's Avatar
wirejock wirejock is offline

Join Date: Oct 2005
Location: Estes Park, CO
Posts: 3,947
Default Angle

Quote:
Originally Posted by 1bigdog View Post
Hi Larry

You are thinking of the 601D left and right. Those are manufactured. Still no joy.
I've sent a message to VANs but looks like they are out until Tuesday.


Thanks.
Yep. I'm looking at the CD. It's on the 7 as well. One part. Plan 19. I can't find it either. Doh!
Funny, a search on VAF turns up no results either so you've discovered a new one.
__________________
Larry Larson
Estes Park, CO
http://wirejockrv7a.blogspot.com
wirejock at yahoo dot com
Donated 12/03/2019, plus a little extra.
RV-7A #73391, N511RV reserved (2,000+ hours)
HS SB, empennage, tanks, wings, fuse, working finishing kit
Disclaimer
I cannot be, nor will I be, held responsible if you try to do the same things I do and it does not work and/or causes you loss, injury, or even death in the process.

Last edited by wirejock : 12-24-2016 at 08:36 AM.
Reply With Quote
  #9
Old 12-24-2016, 08:42 AM
sbal0906's Avatar
sbal0906 sbal0906 is offline

Join Date: Aug 2009
Location: Winnipeg, Canada
Posts: 214
Default

I just searched the PDF version of the 9/9A plans and found no reference to "601R" except for the parts list. I'm wondering if it used to be a part and the design was modified but the parts list wasn't corrected.
__________________
Shamit Bal
http://www.flyaroundthesun.com
RV-9A
Started on wings.
Winnipeg, Manitoba, Canada
Reply With Quote
  #10
Old 12-24-2016, 10:03 AM
nilberg nilberg is offline

Join Date: Dec 2012
Location: Katy, TX
Posts: 233
Default F-601R Mystery Part

Could it be a clip for one of the stiffeners on RV-6 that is now replaced with the joggle.
