Default HS Spar Hole Sizing

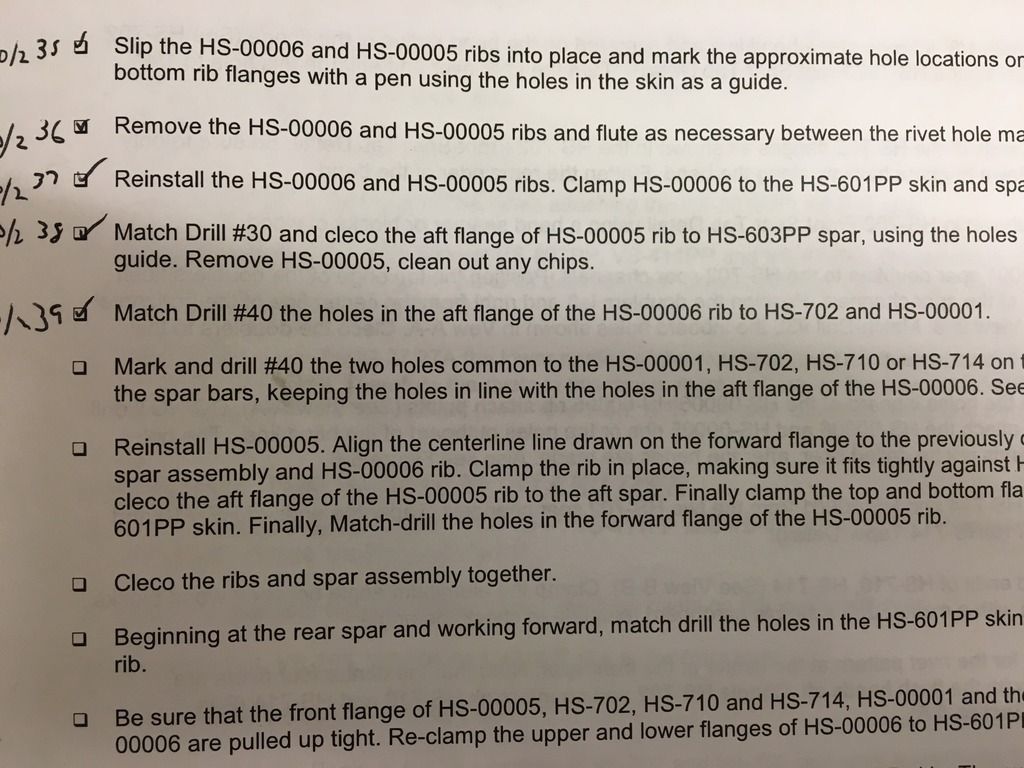

The drawing calls for AD4 rivets in the locations discussed, but the instructions say to drill #40 holes in the last checked item and the first unchecked item. These are from 6-3 referring to the HS drawings.

Shouldn't we be match drilling #30 here? I don't see anywhere in the instructions later before riveting to upsize from #40 to #30.

I just noticed on the second step under "Drilling the Horizontal Stabilizer", it says to drill #40s there as well.



__________________
1961 C172B
RV-7
Tail kit in progress
Reply With Quote
  #2
Old 10-03-2016, 05:42 AM
bret's Avatar
bret bret is offline

Join Date: Feb 2010
Location: Gardnerville Nv.
Posts: 2,828
Default

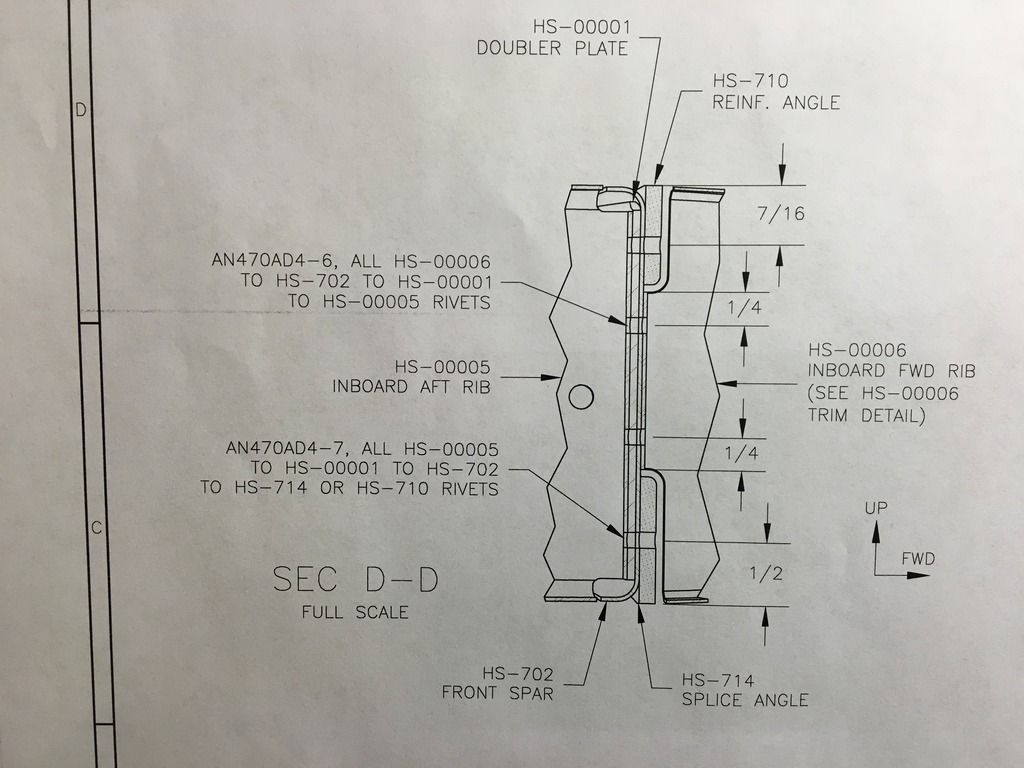

here are is where the rivets go, I don't know how the original HS is built now, this was a drill apart and add forward spar stiffeners. O ya, there is a top and bottom to these stiffeners, take out your calipers and measure.
__________________
7A Slider, EFII Angle 360, CS, SJ.
Reply With Quote
  #3
Old 10-03-2016, 07:26 AM
Raymo's Avatar
Raymo Raymo is offline

Join Date: Nov 2014
Location: Richmond Hill, GA (KLHW)
Posts: 2,183
Default

It is common throughout the plans to first drill to #40 for fitting parts together and later going to the size required in the drawing. It is not clear from your photo what they want in the next to the last step.
__________________
Ray
RV-7A - Slider - N495KL - First flt 27 Jan 17
O-360-A4M w/ AFP FM-150 FI, Dual PMags, Vetterman Trombone Exh, SkyTech starter, BandC Alt (PP failed after 226 hrs)
Catto 3 blade NLE, FlightLines Interior, James cowl, plenum & intake, Anti-Splat -14 seat mod and nose gear support
All lines by TSFlightLines (aka Hoser)
Reply With Quote
  #4
Old 10-03-2016, 12:41 PM
PilotRPI PilotRPI is offline

Join Date: Sep 2013
Location: Hopkinton, MA
Posts: 73
Default

Farther down the page they talk about match drilling flanges to the skins, and a couple other things, but not this point in particular. I guess it makes sense to start #40 and then go #30, as going right for a #30 might wander a bit.

I did indeed install my HS-0001 upside down and match drilled that way into HS 710 and HS 714. The holes aren't straight along those pieces, but they have the 2xd edge distances required, and I sent a pic to Vans and they said I am OK. From now on anything that looks symmetrical, I will measure and double check. It was on the plans, but didn't notice "up" till afterwards.
__________________
1961 C172B
RV-7
Tail kit in progress
Reply With Quote
  #5
Old 11-12-2016, 06:08 PM
amaris amaris is offline

Join Date: Feb 2015
Location: Santa Ynez, CA
Posts: 271
Default

From now on anything that looks symmetrical, I will measure and double check. It was on the plans, but didn't notice "up" till afterwards.[/quote]

Thank you guys for the post, missed the UP as well.
