Default Alternator Bolt Safety Wiring

I am looking for some suggestions on how to best safety wire the three bolts that are on my plane power alternator. One in the case, one in the alternator and one in the starter. I am thinking the two bolts on the adjustment bracket can be wired together but what about the lone bolt that goes through the starter?

__________________
A&P
RV-7 (Sold)
RV-6 (Sold)
1952 Cessna 170B
1947 Aeronca Chief
Reply With Quote
  #2
Old 03-29-2016, 12:31 PM
Raymo's Avatar
Raymo Raymo is offline

Join Date: Nov 2014
Location: Richmond Hill, GA (KLHW)
Posts: 2,189
Default

Drill a small hole in the adjustment bar to secure the safety. You can also just run the safety wire around the slot in the adjustment bar.

I ran one safety from the Sky-Tech starter forward left bolt around the front of the starter to the bolt that attaches the alt to the start. Use some clear plastic sleeve to protect the metal from chafing.

__________________
Ray
RV-7A - Slider - N495KL - First flt 27 Jan 17
O-360-A4M w/ AFP FM-150 FI, Dual PMags, Vetterman Trombone Exh, SkyTech starter, BandC Alt (PP failed after 226 hrs)
Catto 3 blade NLE, FlightLines Interior, James cowl, plenum & intake, Anti-Splat -14 seat mod and nose gear support
All lines by TSFlightLines (aka Hoser)

Last edited by Raymo : 03-29-2016 at 12:35 PM.
Reply With Quote
  #3
Old 04-15-2016, 02:07 PM
BonitaRV8 BonitaRV8 is offline

Join Date: Feb 2012
Location: Bonita, Ca
Posts: 56
Default

I used to just wire around the bracket until I had a DAR make me drill a hole in the bracket and wire through the hole. About 200 hours on the engine the alternator light came on in flight and it turns out the bracket failed right where we drilled the hole for the safety wire causing the belt to slip... I have reverted to the old way.
__________________
Empannagee done
Wings 90% done
Received fuselage
Reply With Quote
  #4
Old 04-15-2016, 03:30 PM
rightrudder rightrudder is offline

Join Date: Mar 2014
Location: Laguna Hills, CA
Posts: 1,805
Default

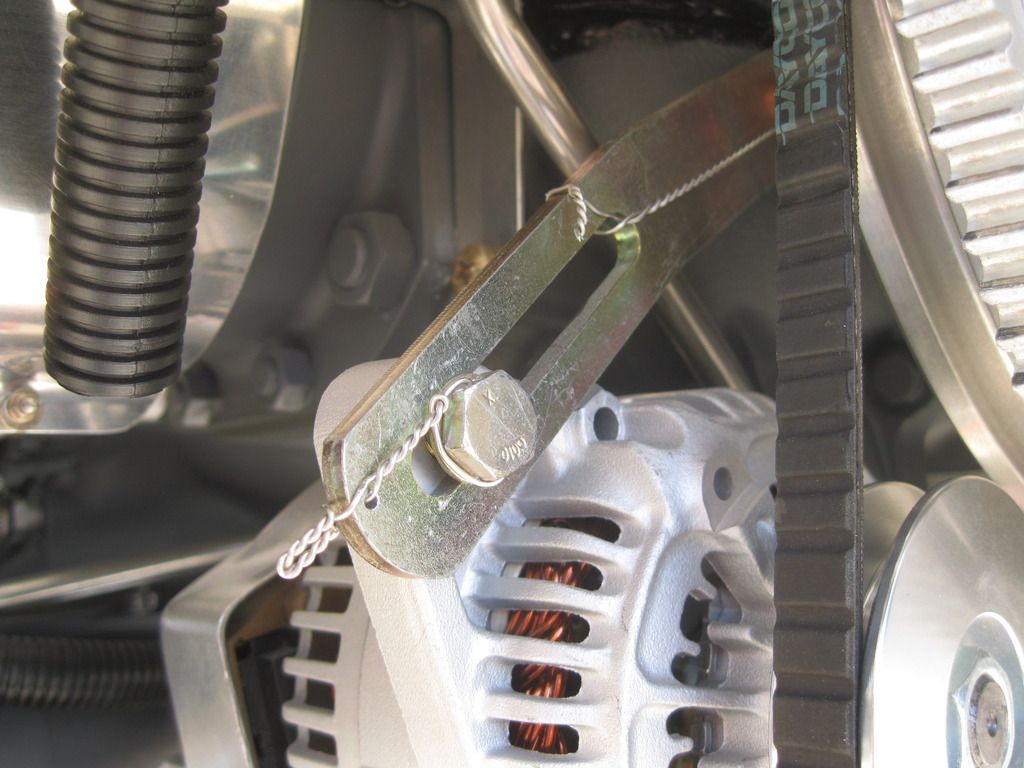

What Ray said. Here's a pic of mine. The alternator bolt wire is wrapped the wrong way (it's since been corrected), but you get the idea.

__________________
Doug
RV-9A "slider"
Flew to Osh in 2017, 2018 & 2019!
Tail number N427DK
Donation made for 2020
You haven't seen a tree until you've seen its shadow from the sky -- Amelia Earhart
Reply With Quote
  #5
Old 04-15-2016, 09:32 PM
SHIPCHIEF SHIPCHIEF is offline

Join Date: Mar 2008
Location: Seattle
Posts: 1,412
Default

I don't safety wire these, I use elastic stop nuts and or double nut the bolts.
Never had a problem.
On the other hand, I have had, and seen on other 4 cylinder Lycomings, broken adjustment bars and a broken alternator mount.
If you drill a hole in the adjustment bar, do it as pictured. I would avoid drilling the beams of the bar adjacent to the slot.
The breaks of the adjustment bars I have seen were in line with the alternator bolt. You might consider a wide washer to distribute the load wider than the head of the bolt, and to hold the bar in the event that it breaks.
The alternator mount that was broken was a VAN's lightweight mount for Narrow Deck engine, so you probably will never see one of those.
This is an important area to inspect regularly, especially with today's electricity dependent aircraft (EFIS, Electronic ignitions, electronic injection etc).
__________________
Scott Emery
http://gallery.eaa326.org/v/members/semery/
EAA 668340, chapter 326 & IAC chapter 67
RV-8 N89SE first flight 12/26/2013
Yak55M, and the wife has an RV-4
There is nothing-absolute nothing-half so much worth doing as simply messing around with Aeroplanes
(with apologies to Ratty)
2019

Last edited by SHIPCHIEF : 04-15-2016 at 09:38 PM.
Reply With Quote
  #6
Old 04-15-2016, 09:54 PM
bruceh's Avatar
bruceh bruceh is offline

Join Date: Mar 2008
Location: Ramona, CA
Posts: 2,370
Default

There is this thread with another nice way to accomplish this.
__________________
Bruce Hill
RV-9A N5771H flown over 800 hours!
http://www.overthehills.com/RV-9A-Project
APRS Tracking for KJ6YRP and New Flying Blog
2020 VAF donator
EAA Tech Counselor, Build assistance - canopy/tanks/fiberglass/electrical/repairs
Reply With Quote
  #7
Old 04-16-2016, 05:52 AM
BillL BillL is offline

Join Date: Sep 2007
Location: Central IL
Posts: 5,516
Default

Quote:
Originally Posted by bruceh View Post
There is this thread with another nice way to accomplish this.
+1 - I searched and found this last week! Great TIP. I did not have the tinnermans on hand, so took a dremel and split a back up washer, set the rivet with the washer, and then removed the washer. The rivet is captured and serves as a flanged post for the safety wire. It worked great! Elegant design!

Oh - I turned the long alt pivot bolt around as it will hit the flywheel if trying to replace the alt with the prop on.
