Default Please do...

Quote:
Originally Posted by Blain View Post
Share it with the rest of us?
I could use it as well...will be there soon enough.

Thanks

Don
__________________
RV-8 build
DONE!
C-GLOV
http://www.mykitlog.com/Don%20Patrick
Reply With Quote
  #12
Old 03-22-2016, 09:16 AM
rv8bldr's Avatar
rv8bldr rv8bldr is offline

Join Date: Jan 2005
Location: Pakenham, Ontario, Canada
Posts: 586
Default

If you scroll down the attached page, you can see how I mounted mine on my -8.

http://rv8bldr.tripod.com/the_engine.html

Apologies for the antique web site; I haven't touched it 12 years....
__________________
Mark

RV-8 C-GURV (Flying since Nov 2004) - Sold
Scratch building 4pl Bearhawk
Flying a '79 Maule M5-235C

President EAA Chapter 245
Reply With Quote
  #13
Old 03-22-2016, 11:27 AM
Berchmans Berchmans is offline

Join Date: Nov 2009
Location: Anchorage, Alaska
Posts: 457
Default

I made a standoff bracket using aluminium U channel, rivet the U channel around the perimeter of the cut in the baffling and bolt the oil cooler to the U channel. I also included the oil shutter as my unit was running to cool...
__________________
Burke Wick
Flying RV 8
Anchorage, Alaska
VAF Dues Paid for 2020
Reply With Quote
  #14
Old 03-22-2016, 01:16 PM
Mark Dickens's Avatar
Mark Dickens Mark Dickens is offline

Join Date: Apr 2012
Location: Collierville, TN (KFYE)
Posts: 1,433
Default

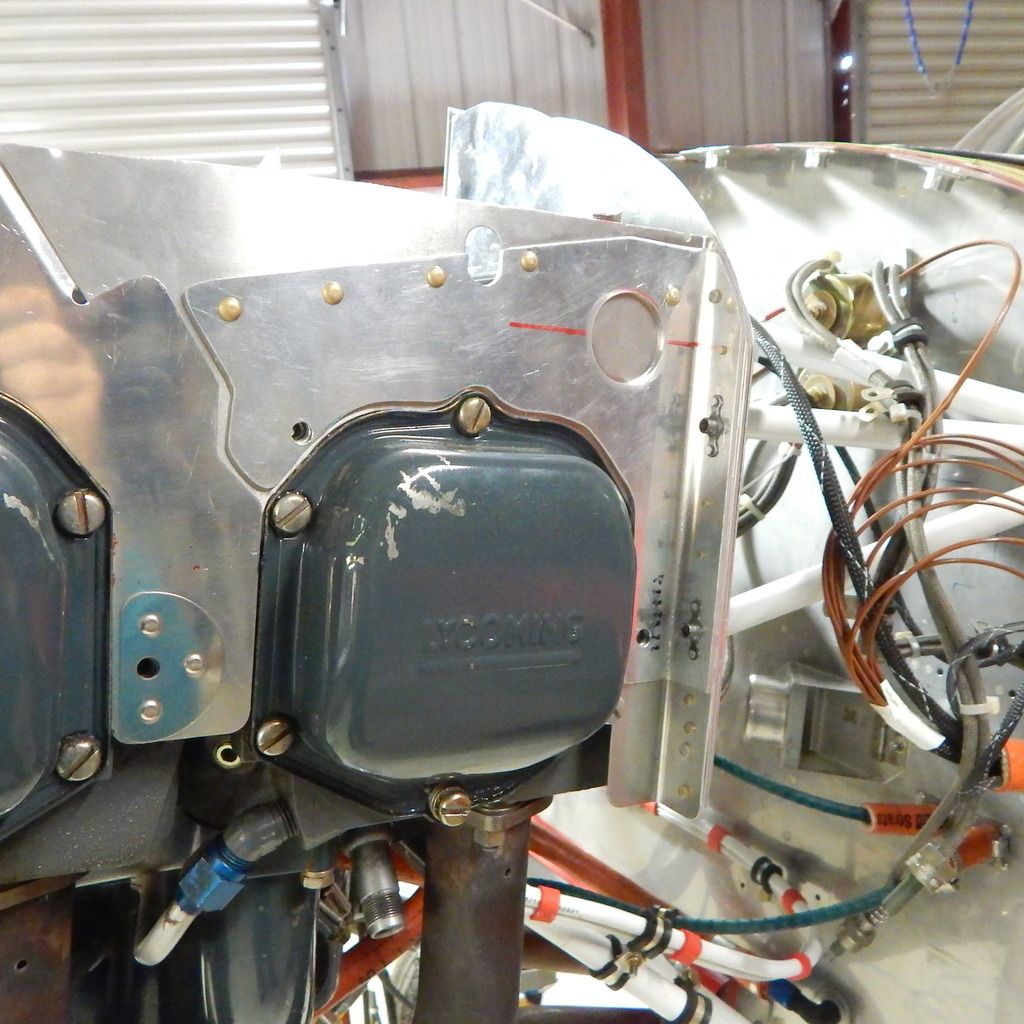

Not sure if this will help, but I cut my oil cooler opening a little too high and the oil cooler was interfering with the upper cowl. So, I used 1/8" U channel to construct a little "duct" that moved the oil cooler down and aft a little. As you can see below, it's a very stout setup. Not shown also is a 4130 steel cross brace reinforcing the inner side of the cooler with one of the cylinder heads. I'll take a photo tonight and post it.
