Default CherryMax Rivet Installation

Hi,

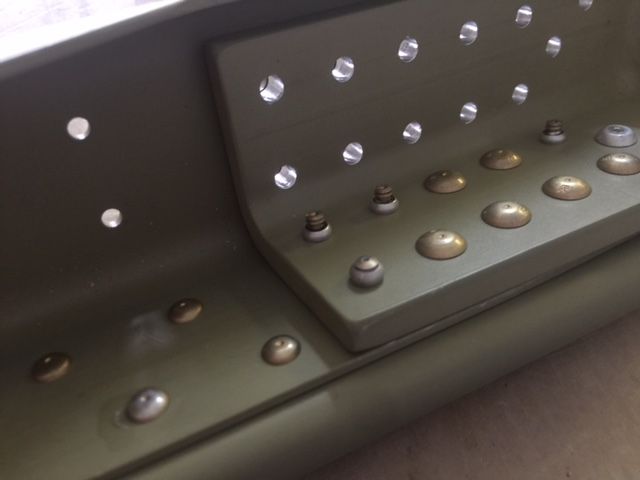

I'm installing the engine mounts on the lower longerons (29-07 step 8). I installed the CR2113-4-5 as supplied by Van's. I was short one rivet so I ordered a additional one from ACS. When I installed the ACS supplied CherryMax the shop end set differently (more flush). I went and reviewed a couple of experienced RV14 builder sites and I saw both shop ends in their installations.

Are both shop ends acceptable? If not, which one is correct. The rivets in question are the two at the end of the engine mount bracket.

Thanks Jim

[IMG][/IMG]
__________________
RV 14A
Serial 140118
Donation - 2020 gladly done!
Reply With Quote
  #2
Old 03-09-2016, 09:09 AM
Ron B. Ron B. is offline

Join Date: Nov 2007
Location: Yarmouth, Nova Scotia
Posts: 2,408
Default

Certainly no expert, but I would say the more flush ones. I had the same problem with setting them. I ended up using at tip from another gun that had a tight hole for the mandrel. With this tip as long as the gun is perpendicular I always get good results. Check your tip to see if there is any slack.
__________________
Thanks Ron
RV-10 SOLD
RV-14 Flying
AirCam flying
Reply With Quote
  #3
Old 03-09-2016, 09:13 AM
David Paule David Paule is offline

Join Date: Dec 2009
Location: Boulder, CO
Posts: 4,435
Default

Check that you're using the right grip length.

Dave
Reply With Quote
  #4
Old 03-09-2016, 09:22 AM
Driving '67 Driving '67 is offline

Join Date: Dec 2011
Location: CZBA, ON Canada
Posts: 193
Default

I checked grip length prior to installation. I just spoke with Van's and they are checking into it for me.
__________________
RV 14A
Serial 140118
Donation - 2020 gladly done!

Last edited by Driving '67 : 03-09-2016 at 08:45 PM.
Reply With Quote
  #5
Old 03-09-2016, 09:39 AM
az_gila's Avatar
az_gila az_gila is offline

Join Date: Jan 2005
Location: 57AZ - NW Tucson area
Posts: 10,011
Exclamation

This might help -

http://www.cherryaerospace.com/docs/...gs/CA-1015.pdf

Also you can check the length of the installed rivets with a good magnifying glass. The length is stamped on the rivet head. Could the installed rivets not be the part number you expected?
__________________
Gil Alexander
EAA Technical Counselor, Airframe Mechanic
Half completed RV-10 QB purchased
RV-6A N61GX - finally flying
Grumman Tiger N12GA - flying
La Cholla Airpark (57AZ) Tucson AZ
Reply With Quote
  #6
Old 03-09-2016, 09:43 AM
mbell mbell is offline

Join Date: Aug 2005
Posts: 132
Default

If you look on the Cherry website they show that the shop end can stick out and still be OK. It could be "flush" and not be OK, because the manufactured head determines whether or not the rivet set properly (in many applications the rivet is truly blind, so only the manufactured head is visible). If the mandrel is flush (or within their tight limits) on the manufactured side and the head does not sit crooked then the rivet is OK.
__________________
Mike Bell
RV4-->6-->6A.
AirCam finished and flying!
Cameron Park, CA (O61)
Reply With Quote
  #7
Old 03-09-2016, 10:58 AM
Driving '67 Driving '67 is offline

Join Date: Dec 2011
Location: CZBA, ON Canada
Posts: 193
Default

Van's said the rivets are perfectly acceptable and that the locking collar on the factory head side is as it should be.

Cheers Jim
__________________
RV 14A
Serial 140118
Donation - 2020 gladly done!
Reply With Quote
  #8
Old 03-09-2016, 01:03 PM
rvbuilder2002's Avatar
rvbuilder2002 rvbuilder2002 is offline

Join Date: Jul 2005
Location: Hubbard Oregon
Posts: 9,035
Default

Another resource for Cherry rivet installation is chapter 5.4 of Section 5 in your construction manual.
__________________
Opinions, information and comments are my own unless stated otherwise. They do not necessarily represent the direction/opinions of my employer.

Scott McDaniels
Van's Aircraft Engineering Prototype Shop Manager
Hubbard, Oregon
RV-6A (aka "Junkyard Special ")
Reply With Quote
  #9
Old 03-09-2016, 01:12 PM
Driving '67 Driving '67 is offline

Join Date: Dec 2011
Location: CZBA, ON Canada
Posts: 193
Default

Thanks Scott,

I had only looked at the Cherry Aerospace website. My section 5 pages are well worn. I had also posted the query as I was unsure of the required standard and thought others might benefit from the question/answer.

I appreciate the quick response I got today from tech support.

Jim
