Dynafocal mount orientation -- urgent question


Hi all,

My a&p is working on hanging my new IO-360 and is not 100% sure the orientation of the dynafocal mounts. Unfortunately, he doesn't have the right plans to refer to because mine are at my house vs at the airport 1.5 hour drive away where my airplane is stranded, and I'm stuck at work. Can someone take a picture either of their plans or their mounted engine and send me the photos to forward on? A quick forum search didn't turn up an answer.

bill.inman at wwwinc dot com

Thanks in advance!

got 'em I'll send them in a minute

Excellent


Thanks a ton!

Hmm...


The Lord Mounts install just like any other Lycoming Engine...?? :)

Is this what you're asking?

Email sent, but in case anyone else needs to see them.

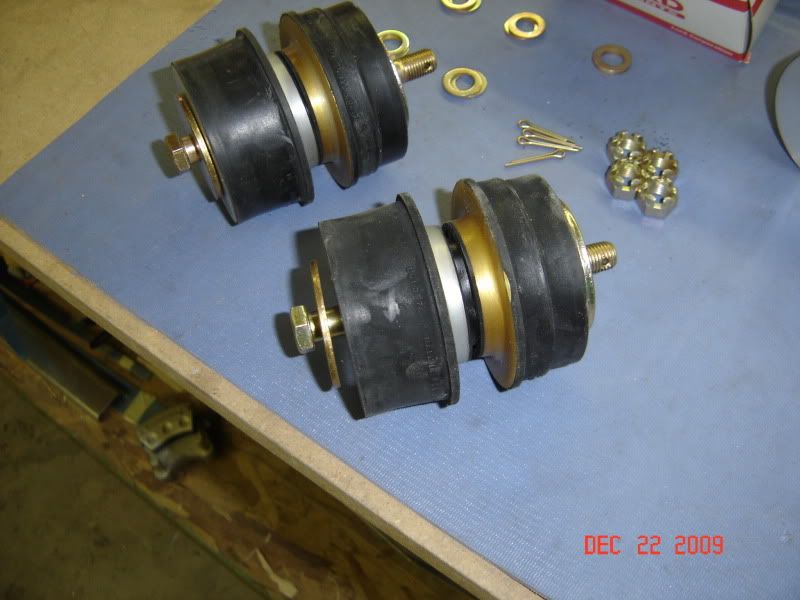

Lower mounts

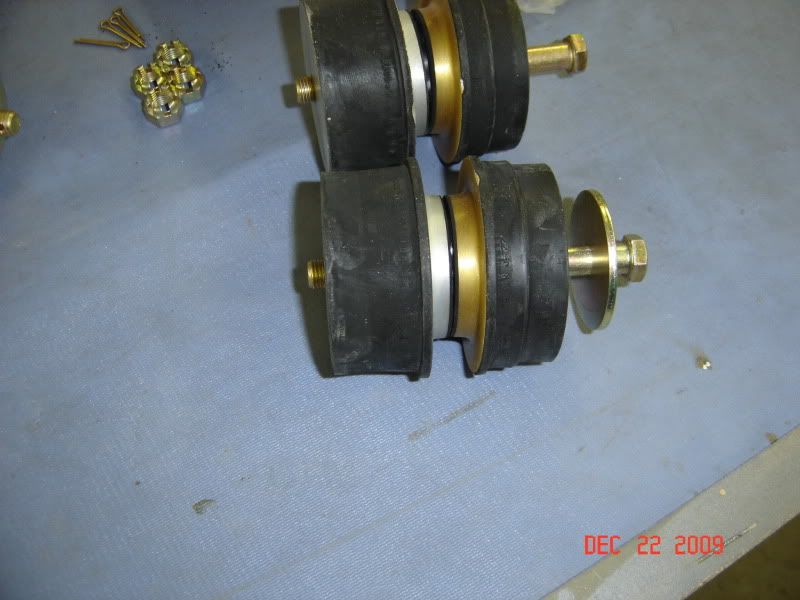

Upper mounts

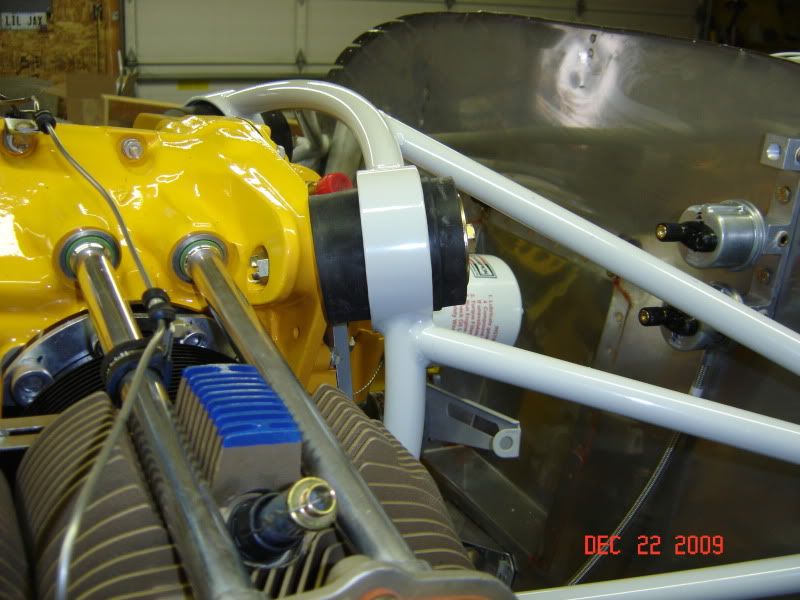

Upper mounts installed


Looks like Reilly out computered me.

If you are talking about the orientation of the "Lord" mounts; the "hard" mount (the one with the "ring") goes behind the mount on top and between the engine and the mount on the bottom. That puts all the "hard" mounts in compression with the aircraft sitting with one positive G.

Thanks all


Mel, I think that is what he was asking me about, but it seems he figured it out because not long after I posted this question, I got a text message with a picture of the engine already hung.

Thanks to everyone for the quick responses.

You're in luck, Van's has the Dynafocal I drawings on their web site:

http://www.vansaircraft.com/pdf/revi..._7A_9A_46A.pdf

http://www.vansaircraft.com/pdf/revi.../RV_7_9_46.pdf

Jekyll
7A slider
