Fuselage cable routing question
Contemplating wire runs from the battery and tail forward to the cockpit/panel area, while my build is at the full-length canoe stage. I see lightening/pass-through holes aplenty in the bulkheads on the right side, but they vanish at the spar web carry-through. What's the secret for routing cables forward further than the spar center section? Can they go over the spar but under the front seats? I lack a completed 10 to look at, so any description of what I should be doing to install conduit and route cables from tail to nose while I have decent access to the aft tail cone area would be appreciated.
|
Typically moving aft to forward a lot of folks install conduit under the baggage area and aim towards the sides by the rear seats to route wires up both sides over the spar.
|
Quote:

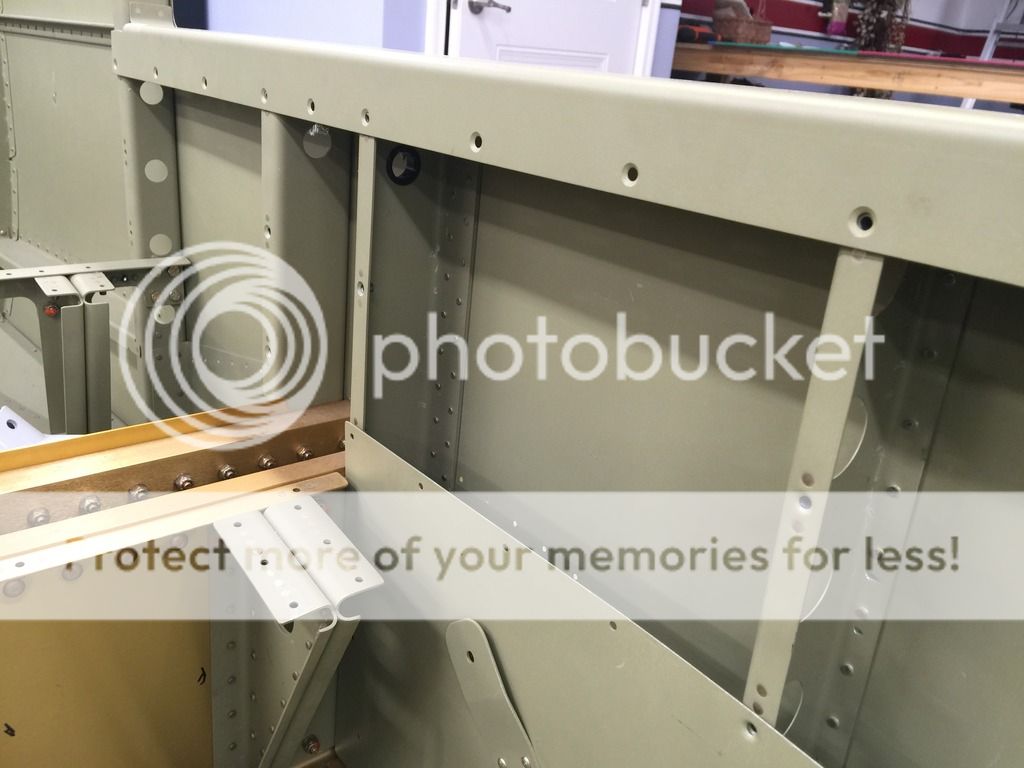

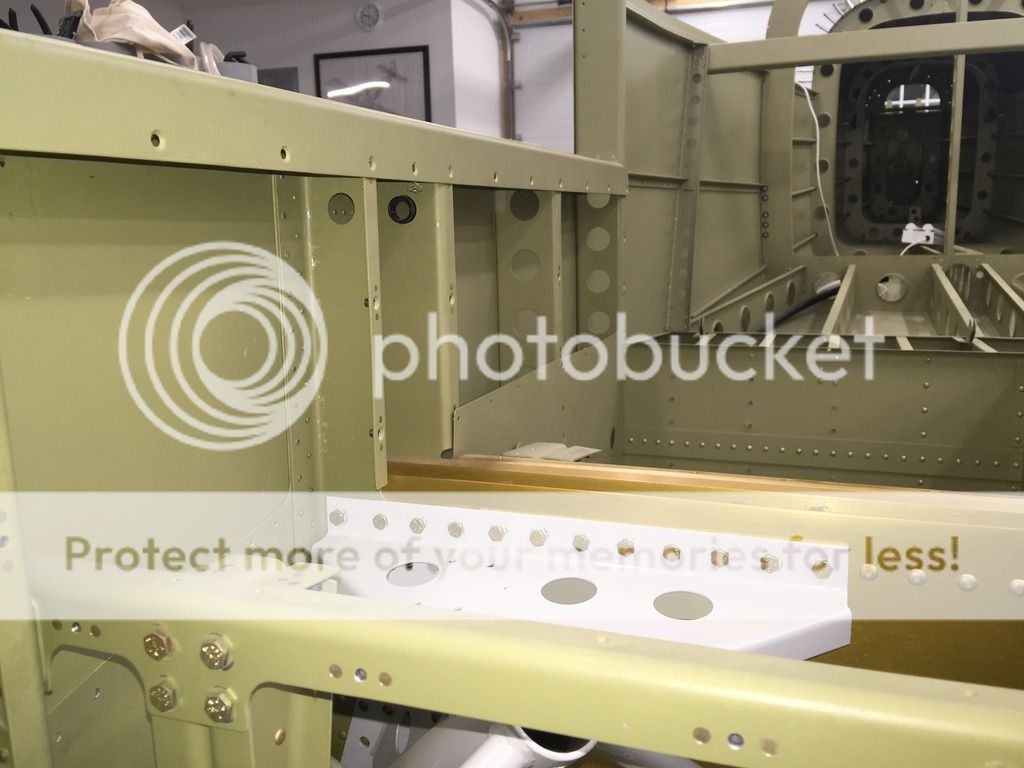

Conduit under baggage. ![]() Side over spar/under door. ![]() You can get a lot of wiring through this area if you take your time and plan the routing. |
a baggage compartment option
I am running two ~3/4 conduits under each side of the baggage area, holes already there, just made a bit larger. They exit nicely in the area that is always fully accessible. Once at the seats they go up and through the 2 5/8" bushings each side that gets us to the panel. I am also making the baggage compartment side cover (right side) removable so I can gain access to that area for a wire run coming through F-1006C. I just prefer to see and inspect wires if at all possible.
With current led lights, dynon txpder/AP servo, battery, and ELT in the back, I have very few wires, and most 20 to 22 gage, running to the back of the plane from the panel, barely enough to fill one 3/4" let alone two. Since COM antennas etc and of course all the wing wiring never need go past the passenger feet area and avionics are getting smarter and draw less current, the need for a lot of "wire capacity" is low on my radar. |
They add up...
Been doing some thinking on this lately and the wires do start to add up.
For example: LED tail light/strobe - 5 wires (PWR pos, PWR strobe, Sync, GND, Shield) Elevator Trim - 5 wires Pitch Servo - 6 wires Magnetometer for G3X - 7 wires Main Battery - 1 BIG wire (maybe two) Master wiring - 1 wire ELT activation - 1 telephone style cable and that doesn't include any other things that might be located back there. I am of the opinion that I would rather have too many conduits beneath that area than not enough... |
Pleading ignorance
Quote:
If it's the flexible conduit, how are you attaching the bushings to the end? Starting fuselage build next month in Oregon - so trying to understand the best practices of the experts that have figured it out. Thanks much! |
Quote:
|
ran a quick experiment...
Ran the test to back up my "estimate" on the 3/4" bushing capacity. Certainly understand the idea of more is better, running out just creates a bit of a mess....
So here is what fit in one 3/4" std vans bushing... Dynon AP std connection (6 wires) with gnd at servo Dynon txpder power & communication wires (3) with local gnd #2 gage for battery pos and 2 x 18 gauge for power up and back to master ELT "telephone wire" strobe, position, and sync (2 x 20 with 22 ga sync), ground local at back 2020 GPS wires, std Dynon install with 4 wires to panel single 5-wire bundle to elevator trim What remains in my install is the 1/4" static line up front. This will leave enough room for about 20 x 20 gauge wires aft of the baggage compartment or other big wires like another #2 for gnd if one choses. Note I did not even include the access I am planning along the right side baggage panel (removable). This will be my, oh forgot about that.......:) place to escape and still look very tight and professional. Cheers, Mike |
step access panel in baggage floor
Bill,
One last comment, I followed some advice on the forum about installing inspection panels (std vans used on stall warning indicator access) in the baggage floor just over the step attachment bolt, saves needing to drill through the bottom skin, allows for step adjustment and/or replacement, and gives great access to this area that is prime for running wires/conduit . Provides easy inspection in that covered area which I really like to have as well for many years to come. Cheers, Mike |
Quote:
Makes perfect sense, though. I presume one stays small and in the center of the web with whatever holes are needed here. |
Thanks, Mike.
Quote:
|
Quote:
Pretty sure the plans show at least the pitot/static lines, and the main battery cable going through these holes. Been 6+ years, so my memory may be a bit fuzzy...... |
Bill,
I think you'll find another set of fore and aft holes in those bulkheads, up higher and hidden by the structure under the door opening. |
...and
I'd be willing to bet you're right, Kyle. Will eat crow here tonight after I poke around up there with a fingertip to verify.
Looks like Mike's B+ fat wire goes through lower down, through his additional hole. It's all coming into focus now. I'm one with the Force... |
Yep
Two factory holes in each piece. Upper ones hidden under the "gunwhale" just as predicted. And here I thought I had done a pretty thorough inspection of the previous workmanship that had brought this slow build kit to the QB-stage.
|
Quote:
|
None on the sides, just the bushings. Can access it later with side panels off, so no need of conduate
|
I don't know what you guys are putting back there!
I have ELT, strobe pack, twin ADAHRS, AP servo, OAT probe, VHF antenna, electric trim and tail lights and I managed to get everything through the two conduits on each side recommended in the plans. As far as I am concerned, any other holes compromise the structure. |
